Exam 15: Cell Signaling

Show Answer

Share

---

All types

Filters

Study Flashcards

Question 1

Short Answer

Review LaterAdd Note

Review Later

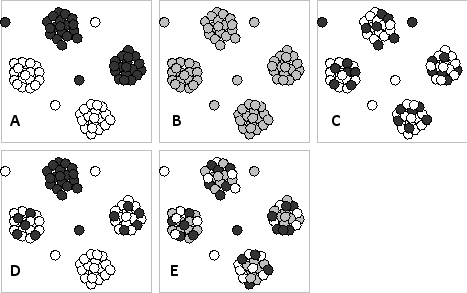

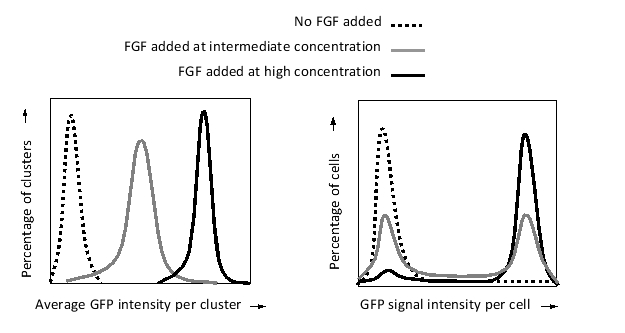

You grow a tumor-derived cell line in a suspension culture, in which the cells are seen either as single cells or in cell clusters. The cells have been engineered to express green fluorescent protein (GFP) under the control of the mitogen-activated protein kinase (MAP kinase) pathway. To your culture media, you add different concentrations of fibroblast growth factor (FGF)-which is known to activate the MAP kinase pathway in these cells-and briefly incubate the cells before harvesting them. You also collect, under a microscope, hundreds of individual cell clusters from each suspension. You then disaggregate the cells in all of your samples and use a FACS (fluorescence-activated cell sorting) machine to measure the GFP signal intensity in individual cells. Finally, you plot the results as histograms, as shown below. According to these results, which of the following schematic drawings better represents the expression of GFP (a proxy for MAP kinase activation) in the culture after intermediate FGF stimulation? In these drawings, higher GFP expression is represented by a darker shade.

Correct Answer

verified

The histograms from the FACS data show ...

View Answer

Show Answer

Question 2

Multiple Choice

Review LaterAdd Note

Review Later

Arabidopsis thaliana seedlings show positive phototropism: they bend and grow toward the source of (blue) light. However, phototropism is not observed if the seedlings are treated with an auxin efflux inhibitor called NPA. Knowing that auxin stimulates elongation of the cells in the growing shoot, these observations are consistent with a model in which, in the presence of a lateral light, ...

A) auxin efflux transporter proteins become localized to the side of the cell that is facing the light source.
B) auxin efflux transporter proteins become localized to the side of the cell that is away from the light source.
C) auxin influx transporter proteins become localized to the side of the cell that is facing the light source.
D) auxin influx transporter proteins become localized to the side of the cell that is away from the light source.
E) auxin efflux transporter proteins become uniformly distributed around the cell.
Answers

Correct Answer

verified

Show Answer

Question 3

Multiple Choice

Review LaterAdd Note

For the α subunit of a trimeric G protein, …

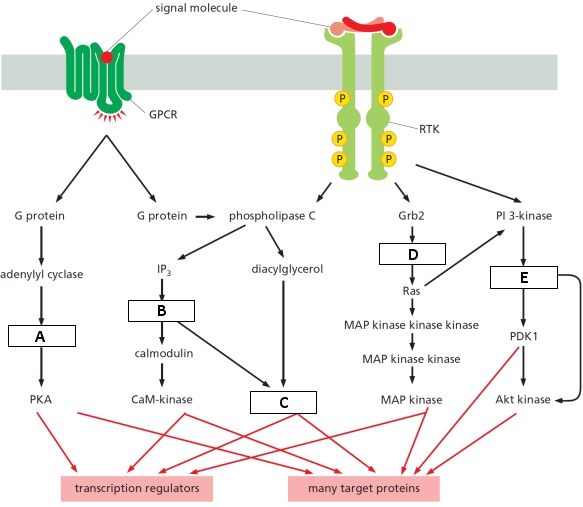

In the following diagram showing five parallel signaling pathways downstream of a receptor tyrosine kinase (RTK) and a G-protein-coupled receptor (GPCR), indicate which boxes (A to E) correspond to the following proteins. Your answer would be a five-letter string composed of letters A to E only, e.g. CDBAE. ( ) Cyclic AMP ( ) Protein kinase C ( ) Sos ( ) PI(3,4,5)P₃ ( ) Ca²⁺

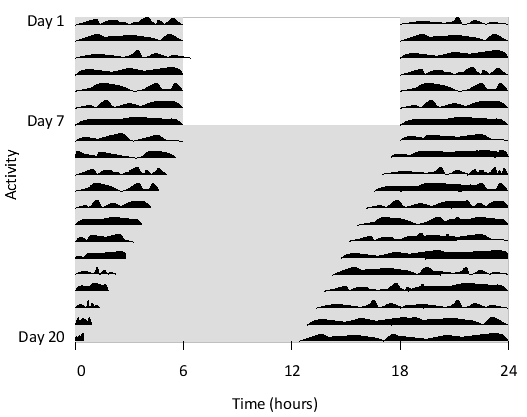

You have studied the circadian clock in a certain mouse strain by monitoring the physical activity (e.g. wheel-running) of a few mice over an extended period of time. For the first week, you kept the mice under normal 12 hr light /12 hr dark cycles; they were then transferred to constant darkness. You have plotted the average activity of the mice in the following graph. The light and dark conditions are represented with white and gray backgrounds, respectively. The activity in each day is plotted in black in one row of the graph, and consecutive days are arranged from the top to the bottom. The horizontal axis represents the time of the day. Based on these results, what is the most accurate estimate for the free-running period of the circadian clock in this mouse strain?

In the following graphs, the cellular response, as measured in real time by the concentration of a certain active effector protein, is plotted over time for five cell types (A to E) that are treated with three different concentrations of a signal molecule. During the time period indicated by the horizontal gray bar, the signal molecule is present in the culture media at a concentration of 1 nM (dotted curve), 5 nM (gray curve), or 25 nM (solid curve). Answer the following question(s) based on these graphs. -Which of the cell types A to E shows the widest dynamic range of signal concentration? A) B) C) D) E)

Indicate true (T) and false (F) statements below regarding cellular signaling mediated by nitric oxide (NO). Your answer would be a four-letter string composed of letters T and F only, e.g. TTTF. ( ) Once produced, NO can diffuse to neighboring cells. ( ) NO has known roles in cGMP-independent as well as cGMP-dependent signaling. ( ) NO normally decreases cGMP concentration by activating cGMP phosphodiesterase. ( ) The drug Viagra® counteracts the effects of NO on penile blood vessels.

Whereas the cholera toxin ADP-ribosylates the α subunit of stimulatory G protein (Gs) , thereby blocking GTP hydrolysis, pertussis toxin ADP-ribosylates the α subunit of inhibitory G protein (Gᵢ) and prevents interaction with the receptor. What is the effect of these toxins on the concentration of intracellular cAMP?

Indicate true (T) and false (F) statements below regarding G-protein-coupled receptors (GPCRs). Your answer would be a five-letter string composed of letters T and F only, e.g. TTFFF. ( ) All GPCRs share a similar structure composed of seven transmembrane helices. ( ) All GPCR ligands (signal molecules) have a similar structure. ( ) GPCRs have only been found in multicellular organisms, consistent with their role in intercellular signaling. ( ) The hormone insulin is recognized by a GPCR on the surface of its target cells. ( ) Once activated, a GPCR molecule can activate multiple molecules of G protein to amplify the incoming signal.

Which of the following is NOT a common second messenger in cell signaling?

Indicate whether each of the following occurs inside the cell in the presence (P) or absence (A) of stimulation with a Hedgehog signal. Your answer would be a four-letter string composed of letters P and A only, e.g. PPPP. ( ) Sequestration of Smoothened in intracellular vesicles ( ) Accumulation of unprocessed Ci in the nucleus ( ) Phosphorylation of Smoothened ( ) Recruitment of Fused and Costal2 to the plasma membrane

All nuclear receptors ...

In the following schematic diagrams of ethylene signaling in plants, 1 denotes ethylene, 2 denotes ethylene receptor, 3 denotes CTR1, 4 denotes EIN3, and 5 represents the expression of ethylene-responsive genes. Which diagram better depicts the signaling pathway? Activation and inhibition are indicated as normal and blunt arrows, respectively.

What is the major way by which the monomeric G protein Ras is activated in receptor tyrosine kinase signaling?

Which of the following is a major consequence of activation of phospholipase C-β (PLCβ) by the Gq trimeric GTPase?

The Src kinase can be regulated by at least two mechanisms. Kinases of the CSK family inactivate Src by phosphorylating a C-terminal tyrosine residue. On the other hand, binding of activating ligands (including some activated receptor tyrosine kinases, or RTKs) results in autophosphorylation at a tyrosine residue near the active site, stimulating Src activity. Full activation of Src therefore requires both dephosphorylation at the inhibitory tyrosine and binding to an RTK. Which of the following logic gates (A to E) correctly models the activation of Src kinase (output) as a function of the activity of the upstream regulators (inputs)?

Consider a signaling protein that is only made up of one SH2 domain and two SH3 domains. This protein is most likely ...

Indicate true (T) and false (F) statements below regarding the ubiquitin ligase c-Cbl. Your answer would be a four-letter string composed of letters T and F only, e.g. TTTF. ( ) It contains an SH2 domain, and can therefore activate RTK signaling. ( ) It ubiquitylates activated RTKs. ( ) Its overactivation can lead to prolonged RTK signaling and promote the development of cancer. ( ) It is part of a negative feedback loop to down-regulate RTKs.

Cancer-related genes can be classified into two major groups. Proto-oncogenes encode proteins that normally act in promoting cell growth and proliferation. Gain-of-function mutations in proto-oncogenes can therefore transform the cells into a cancerous state. Tumor suppressor genes, on the other hand, encode proteins that normally function to keep cell proliferation in check. Thus, loss-of-function mutations in tumor suppressors can lead to cancer by eliminating the inhibitory effect of these genes. Mutations in genes encoding the components of the canonical Wnt signaling pathway are commonly found in colorectal tumors. Indicate whether the gene for each of the following is a proto-oncogene (P) or tumor suppressor (T). Your answer would be a four-letter string composed of letters P and T only, e.g. PPPP. ( ) Wnt ( ) APC ( ) Axin ( ) ?-Catenin

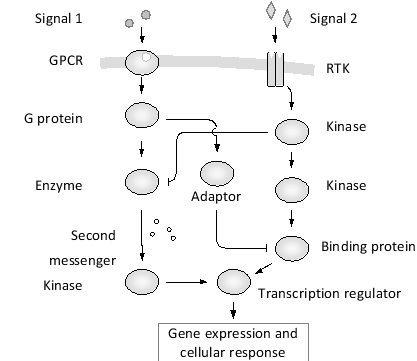

Consider the signaling pathway depicted below, which involves two different receptors. Assume that a protein is active only when it is activated but not inhibited by its upstream signaling molecules. Activation and inhibition are indicated by normal and blunt arrows, respectively. Under which of the following conditions is target-gene expression induced?
